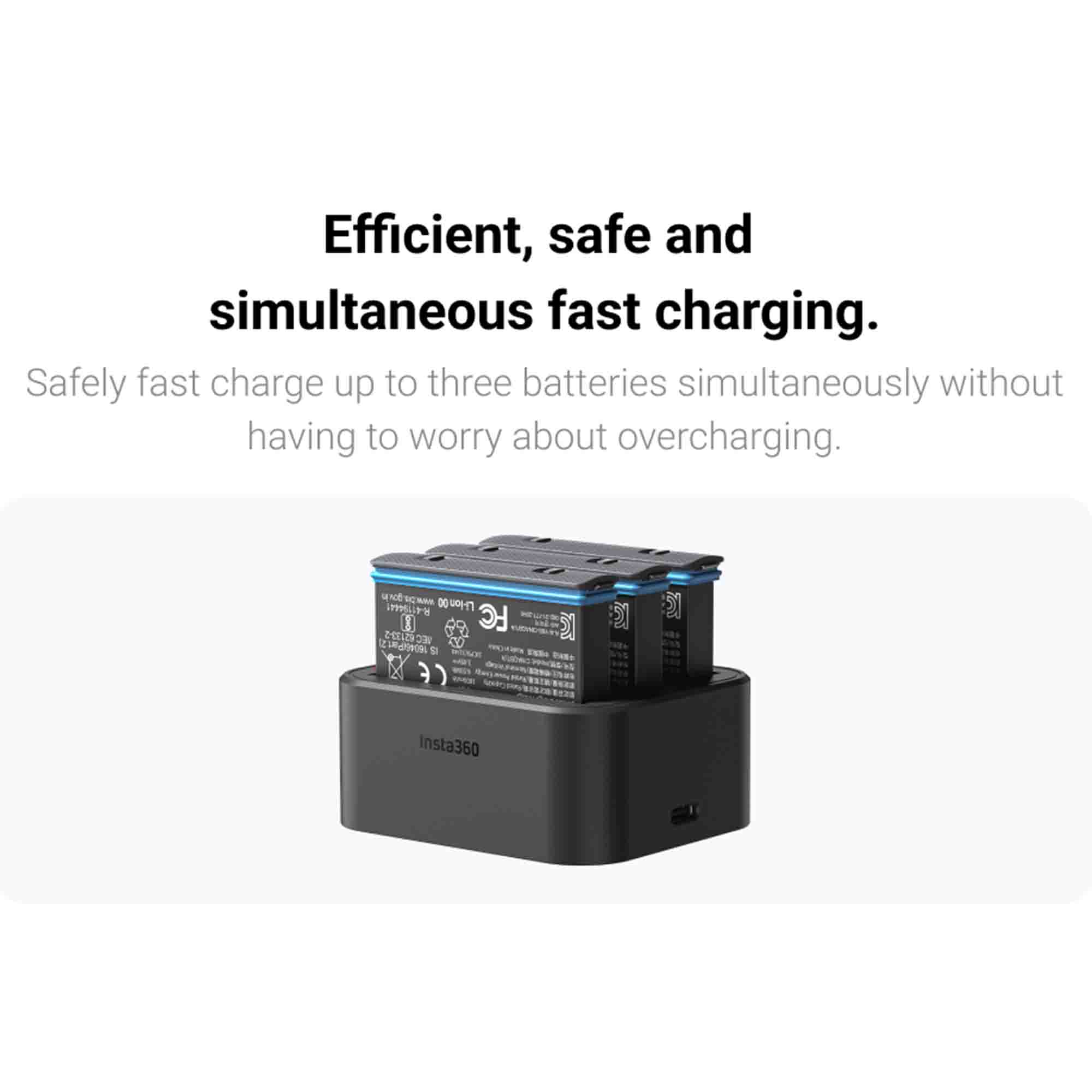

The Insta360 Fast Charge Hub is a triple bay charger designed specifically for Insta360 ONE X3 Batteries. This charger can charge (1) one, two (2) or three (3) batteries simultaneously (x2 faster charge than charging through the camera). With an integrated smart charging circuit, this charger automatically optimizing the charging sequence when more than one battery is connected.

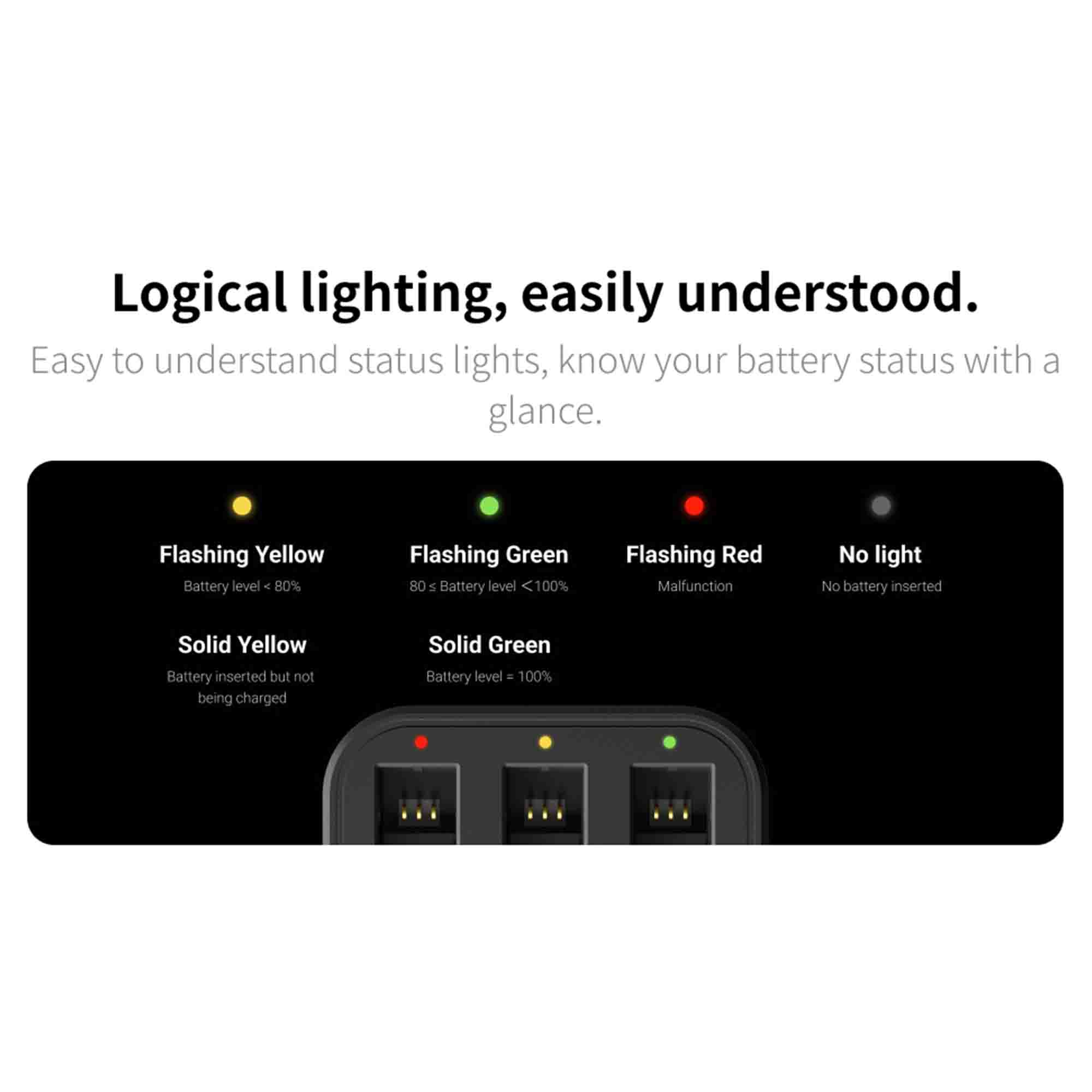

The indicator lights on the Fast Charge Hub will flash red/green once the hub is connected to USB Type-C charging cable and plugged into a compatible wall adapter (USB wall adapter sold separate - 2A rated adapter required).

When the battery is inserted into the slot the charger will then analyze the battery and illuminate red during the charging sequence. Once the charge is complete the indicator light will illuminate green.

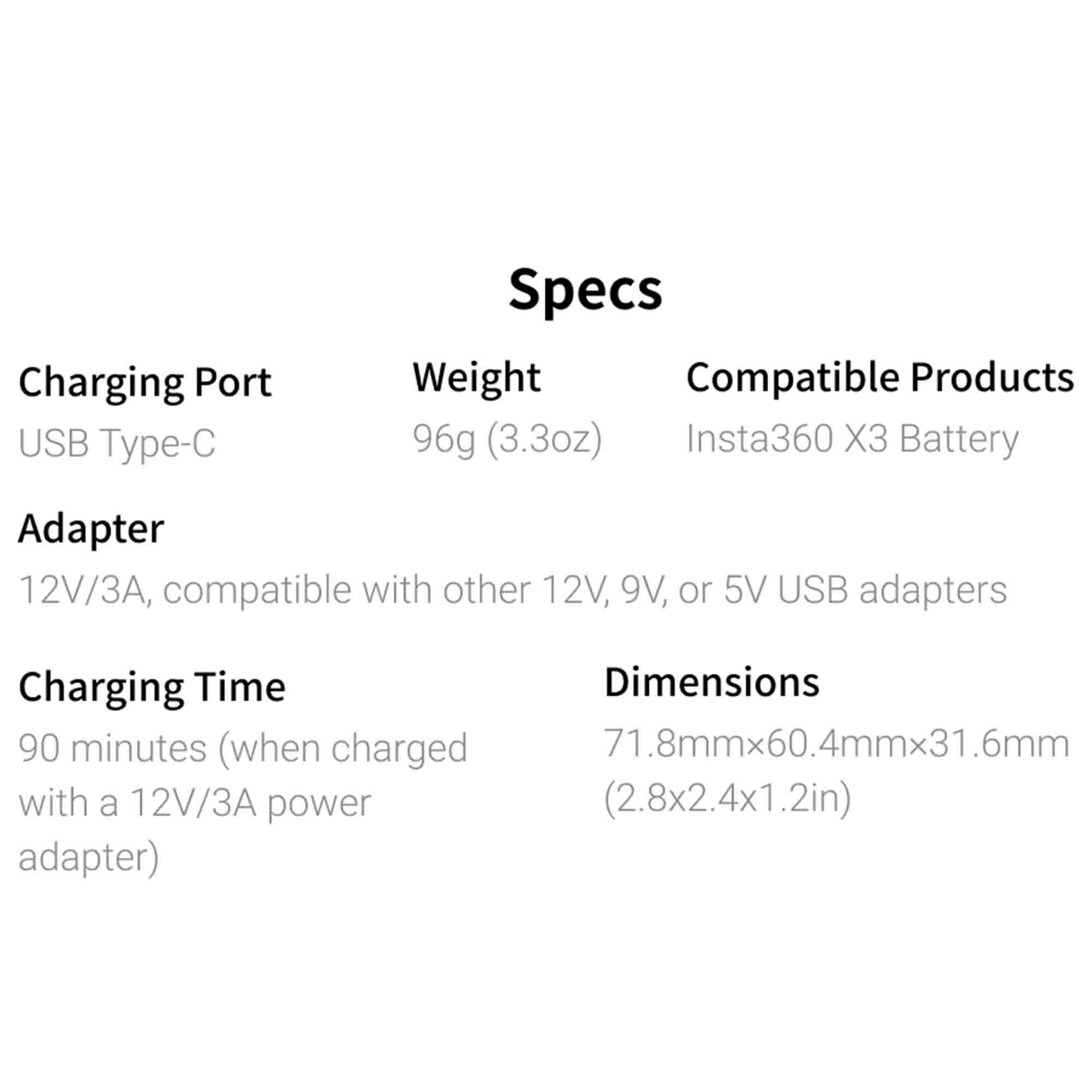

Fast Charge Hub Specification

Input

USB-C Smart Charging 12V/3A

Charging port

USB Type-C

Working Temperature

-4°F to 104°F (-20°C to 40° C)

Charing Temperature

32°F to 104°F

Compatible Devices

Charges up to x3 Insta360 X3 Batteries

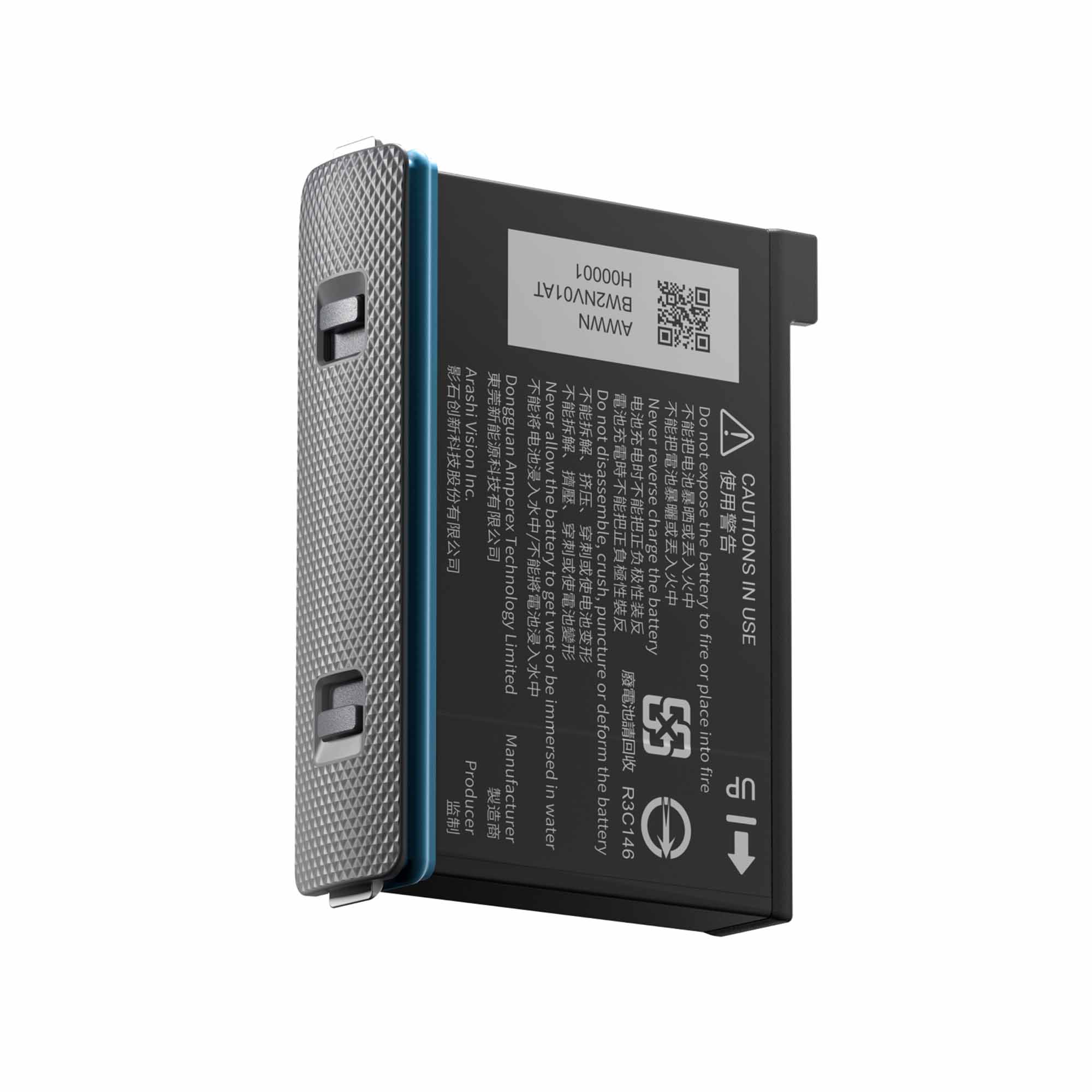

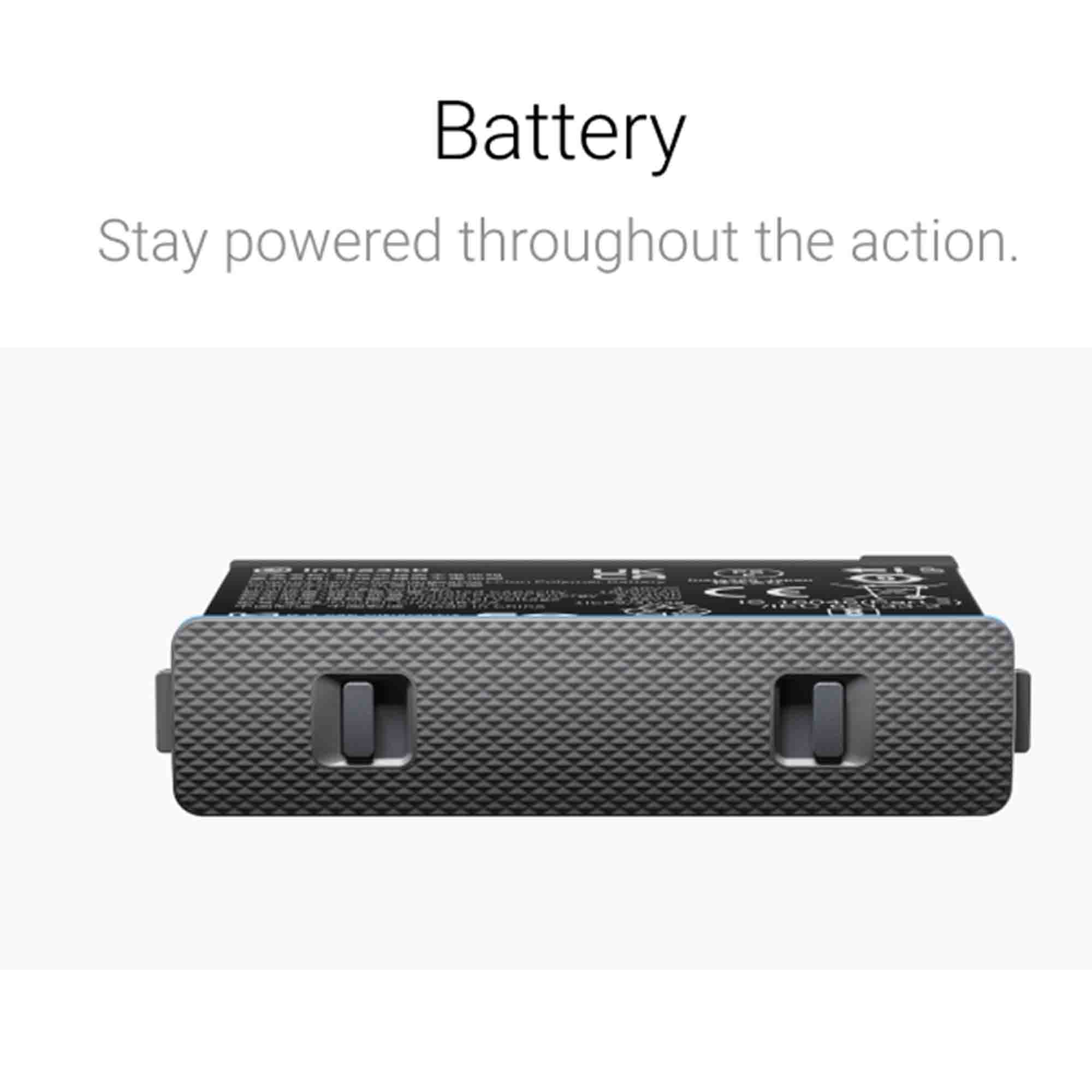

Battery Base Specifications

Rated Voltage:   3.85V

Max Charge:      4.4V

Rated Power:     1420mAh / 5.46Wh

In The Box:

1X - Fast Charge Hub for Insta360 X3

2X- Insta360 Batteries for X3 Camera

1X - USB Type-C Charging Cable

1X - User Manual
